The Geofabrics rail team possess critical design expertise and a long project history in the utilisation of geosynthetics for the construction and maintenance of rail formations. A correctly designed geosynthetic can serve the following functions: Improve the bearing capacity of insitu subgrades to enable formation construction, improve the structural performance of ballast to achieve target bearing capacity and reduce soil and ballast importation and extend maintenance intervals and reduce costs by maintaining track alignment and minimise long term deflection.
EXPLORE THE SOLUTIONS ON THIS PAGE
New Rail- Construction over Soft Ground (BW)
New Rail Formations constructed over Soft Ground
New Rail -Reduce Imported Material (BW)
NEW RAIL FORMATIONS - REDUCING IMPORTED MATERIAL
Rail Formation - Maintenance (BW)
RAIL FORMATION - MAINTENANCE AND ALIGNMENT ISSUES
Rail Formation - Drainage (BW)
RAIL FORMATION - DRAINAGE / FOULING BALLAST
Rail OHS slideshow solution
OHS PROTECTION OF THE RAIL CORRIDOR
Rail Erosion Control slideshow solution
EROSION PROTECTION, DRAINAGE AND REHABILITATION

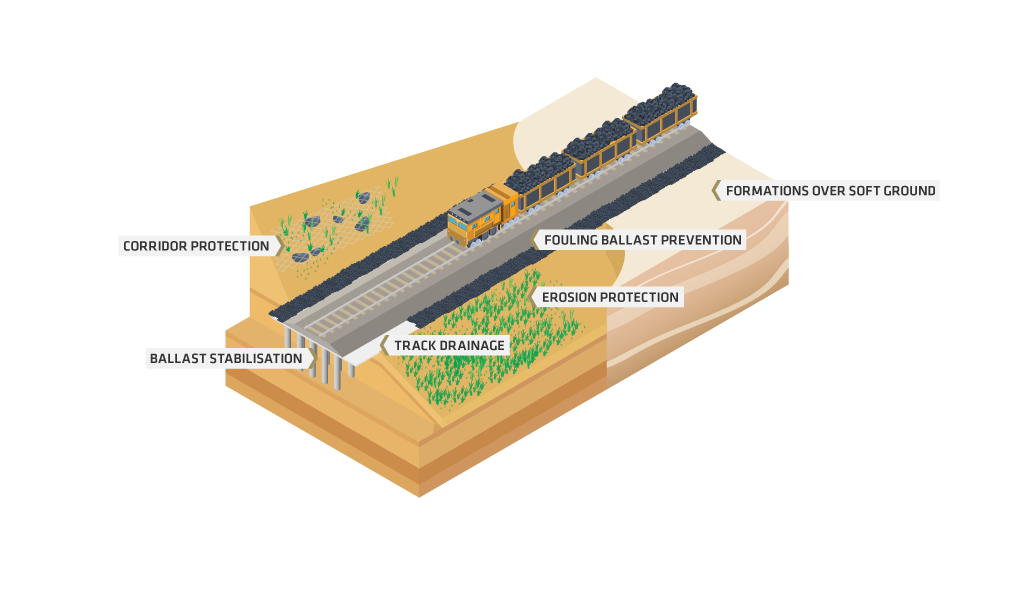

Geofabrics Rail Diagram

GEOFABRICS EXPERIENCE IN RAIL

The key areas where Geosynthetic solutions benefit Rail Formation construction is to increase the bearing capacity of poor ground conditions, and to maximise formation performance through mechanical reinforcement and improved water management. The primary advantage of Geosynthetics is portability to remote sites and rapid deployment capability for changing ground conditions during construction. Geosynthetic ensure consistent and replicable performance and can be implemented at short notice to address Geotechnical challenges, drainage and OHS Risk.

The solution for rail formation construction will vary particularly in regard to the ground conditions and drainage capability. There are also key design criteria that link to the ballast available and train traffic numbers and loads. Geofabrics has expertise to recommend the most suitable Geosynthetic for the design aim on your site, and a suite of support tools that includes design software, documented case studies, research papers and project specific testing. Our industry partners have been working in rail for 50+ years so if your problem has occurred previously, we know how to solve it, and if it is new, we want you as an industry partner to research and build a solution

GEOSYNTHETIC COST BENEFITS

Geosynthetics are used to design rail formations that improve the structural performance and durability of site soils available for construction. The cost saving is achieved because rail embankments constructed with a Geotextile or Geogrid can be made with less ideal material, and for the same formation thickness, much higher maintenance intervals can be achieved. The construction process is faster, more environmentally friendly, and requires less expensive importation of sub-ballast building material. The right Geosynthetic also allows rail corridors to be constructed on soft ground conditions that would be otherwise cause unacceptable deviations of the corridor, thus affecting train speeds and efficiency.

VISIT OUR MINING INNOVATION LAB
New Rail- Construction over Soft Ground

New Rail Formations
- Construction over Soft Ground

The need to construct rail embankments over structurally weak ground is regularly encountered for new rail track construction. The right Geogrid or Geoweb can increase the bearing capacity over soft insitu soils through mechanical stabilisation of ballast layers to facilitate improved track foundation and long term performance.

A correctly designed TenCate High Strength Geotextile can provide initial reinforcement over areas of sludge to enable site access and rapid construction. This will also separate ground soils from introduced formation material, provide key drainage functions but most importantly ensure rapid construction timeframes that drive the economics of rail formation construction.

VIEW MORE INFO

FEATURED PRODUCT SOLUTIONS

Tensar Geogrids and Sub-ballast Stabilisation

Tensar TriAx® Geogrids stabilise ballast and sub-ballast layers through the principle of “mechanical interlock.” When unbound aggregate is compacted over a geogrid, the coarser particles partially penetrate through the geogrid apertures and lock into position. The load distribution over the underlying subgrade is enhanced, increasing its effective bearing capacity. TriAx Geogrid offers strength at low strain in all directions, preventing large deformations within the aggregate. The geogrid’s ability to confine aggregate particles significantly reduces lateral spreading of granular particles, a major cause of ballast and sub-ballast settlement. This video shows a side-by-side comparison demonstrating how TriAx Geogrid works to combat settlement compared to an unstabilsed track.

PRESTO International Geoweb with Insitu or Ballast Infill

The Presto Geoweb® system is used to improve the structural performance of the rail formation by enabling cellular confinement of insitu soils to establish the subgrade layer . This will see improved subgrade bearing capacity and better formation performance long term. The added benefit is the ability of a Geoweb to remain free draining when installed below the formation, to prevent water layers infiltrating the key structural layers. Geofabric’s key supply partner Presto Geosystems has specific design support established over a number of years with significant projects in rail construction.

TenCate High Strength Geotextiles Subgrade Reinforcement

TenCate geosynthetics allow construction over weak subgrades by uniformly distributing the load and improving bearing capacity and providing reinforcement to weak or low strength subgrades. The use of TenCate High Strength Geotextiles as reinforcement, separation and filtration layer offers a simple, quick and cost-effective alternative to achieve

GET IN TOUCH

New Rail -Reduce Imported Material

New Rail Formations
- Reducing Imported Material

The structural capacity of the rail formation can be improved by reinforcement both at subgrade level and within the sub-ballast or formation layers. The solutions of either a Geogrid or Geoweb within the formation can be evaluated by desktop analysis, but the real design and subsequent cost saving benefit is achieved by applying actual site ground and construction conditions.

VIEW MORE INFO

FEATURED PRODUCT SOLUTIONS

Tensar Geogrid Mechanical Stabilisation

Tensar TriAx® Geogrids work by mechanically stabilising ballast aggregate particles, providing positive structural performance to the layers and creating less ballast settlement and maintenance requirements. This results in a thinner sub-ballast depth that performs the same as a much thicker layer, requiring less volumes of imported material and resultant cost savings.

The efficiency of the Tensar TriAx® geogrid interaction is driven by the geogrid shape and structure, and how it interacts with the ballast intended for construction. Interlock is the mechanism by which the geogrid and aggregate interact under an applied load and It is critical that Geofabrics and Tensar design expertise is sought to ensure maximum cost benefit.

PRESTO International Geoweb with Insitu or Ballast Infill

The Presto Geoweb® system is used to improve the structural performance of the rail formation by enabling cellular confinement of either the subgrade or sub-ballast layers . A Geoweb with insitu soil will improve subgrade bearing capacity markedly and if installed in the sub-ballast layer, the same structural performance can be achieved with less depth of material. The added benefit is the ability of a Geoweb to remain free draining when installed within the formation. Geofabric’s key supply partner Presto Geosystems has specific design support established over a number of years with significant project support.

Reduces Cross Section Thickness:  Ballast confined in the 3D GEOWEB provides structural benefits to reduce cross section thickness by up to 60%, significantly reducing installation and rehabilitation costs.

TenCate High Strength Geotextiles Subgrade Reinforcement

TenCate geosynthetics allow construction over weak subgrades by uniformly distributing the load and improving bearing capacity and providing reinforcement to weak or low strength subgrades. The use of TenCate High Strength Geotextiles as reinforcement, separation and filtration layers allows rapid construction timeframes, but also reduces the amount of soil material utilised to construct over soft ground.

GET IN TOUCH

Rail Formation - Maintenance

Rail Formation
- Maintenance and Alignment Issues

Superior design longevity of the Rail Formation is achieved by a Geosynthetic inclusion in the formation, whether it be at subgrade or within ballast layers.

The structural performance of the ballast can be improved with the use of either a Geogrid or Geoweb which results in less ballast deformation and increased maintenance intervals. This brings significant cost savings to regional mining rail tracks that attract significant maintenance costs.

Other maintenance costs incur due to ballast fouling or “erosion pumping”, formation drainage issues and OHS or Environmental interruptions. Tracktex has been created to address the extensive and expensive track and ballast deterioration problem caused by ‘Erosion Pumping Failure’ or mud pumping which results in mud holes. Other solutions for drainage include high crush strength Megaflo Panel drains to facilitate rapid removal of water that could compromise formation performance.

VIEW MORE INFO

FEATURE PRODUCT SOLUTIONS

Tensar Ballast Reinforcement

Approved by Network Rail in the UK and national rail authorities across the world, Tensar® TriAx® Tx190L geogrid is specially designed for use in track beds. The unique large aperture triaxial structure of Tensar® TriAx® Tx190L is designed specifically for track ballast stabilisation. It is scientifically proven to lock ballast in place limiting lateral movement and keeping tracks aligned. This technology reduces the rate of ballast degradation and settlement to extend the track maintenance cycle. Geofabrics have access to Tensar technologies and design software to support you in making the right Geosynthetic choice for your ballast type.

PRESTO International Geoweb Ballast Reinforcement

Geoweb® cellular confinement system can help create high-stiffness ballast layers by confining the ballast within the 3D structure, creating a stiffened slab which increases load-bearing capacity and minimises horizontal and vertical movement. The perforated structure of Geoweb® allows lateral drainage of water from within the ballast.

  • Reduces Ballast Degradation:  Long-term confinement significantly reduces ballast movement and rotation resulting in increased ballast life.
  • Less Down-Time: The GEOWEB material can be quickly installed to make any necessary repairs and minimize costly track disruptions.
  • Installation Benefits: Due to the ease of installation, the GEOWEB material can be installed by the railroad’s on-site crews during any weather conditions

Tracktex Anti-mud Pumping Geocomposite

Tracktex has been created to address the extensive and expensive track and ballast deterioration problems caused by ‘Erosion Pumping Failure’ or mud pumping which results in mud holes. Tracktex is a unique patented engineering solution delivered through a calculated product development program, in partnership with rail operators and track bed engineering specialists.

The new Tracktex product is revolutionary in it’s ability to both reinforce and prevent fouling of clean ballast layers that are detrimental to long term performance.

GET IN TOUCH

Rail Formation - Drainage

Rail Formation
- Drainage / Fouling Ballast

Geofabrics has expertise to recommend the most suitable Geosynthetic to address drainage impacts that affect your roads and operating areas. The impact of good drainage is significantly underestimated in terms of it’s ability to cause service life issues through structural failure both observed in rutting and pot holes. Geofabrics has specialist products and design support to understand and evaluate drainage problems onsite.

VIEW MORE INFO

FEATURED PRODUCT SOLUTIONS

Geofabrics Megaflo® Panel Drains

Good rail formation drainage is a primary factor in maintaining serviceability. The Megaflo® drainage system is a cheaper alternative to traditional pipe drainage systems. Megaflo® halves the installation time required for traditional methods and only requires a narrow trench, so installation and material costs are significantly reduced.

Megaflo® is widely used in critical applications, because of its high compressive strength under mining loads and high flow velocity means less risk of siltation. It can be used with site sands rather than costly drainage aggregate when designed correctly. The Geofabrics Mining Technical Hub and GRID Laboratory has extensive experience in critical design parameters that can assist with the right Megaflo® Pipe and Geotextile choice to maximise performance on your specific site.

Tracktex Anti-mud Pumping Geocomposite

Tracktex has been created to address the extensive and expensive track and ballast deterioration problem caused by ‘Erosion Pumping Failure’ or mud pumping which results in mud holes.

Tracktex is a unique patented engineering solution delivered through a calculated product development programme, in partnership with rail operators and track bed engineering specialists.

Geofabrics bidim® Geotextiles

bidim® geotextiles are commonly used in the rail formation to separate the capping layer from the ballast layer, providing both a separation and filtration function. The rail industry typically demands bespoke bidim® grades due to the nature of their aggregates and applied loads.

All bidim® nonwoven geotextiles are manufactured in Australia to ISO 9001 standards and are supported by a rigorous MQA process as well as being designed to meet the requirements of Australian and New Zealand road authorities.

GET IN TOUCH

Rail OHS Solution

OHS PROTECTION OF THE RAIL CORRIDOR

Geofabrics Rockfall offers a complete range of Maccaferri mesh systems for rockfall protection of the rail corridor. The Maccaferri range of high strength mesh systems encompasses a group of high durability products with a range of strengths and corrosion protection options.

The most widely considered is a simple drapery system that encompasses the slope and allows rock to fall inside the mesh, but active systems are available that incorporate rock bolting techniques and anchored systems depending on the slope requirements.
For significant rock size events, rockfall fences and protection embankments are an effective option to intercept rockfalls or shallow landslides; especially when there are very frequent rockfalls that needs to be intercepted or when the anticipated impact energies are too high for a standard rockfall catch fence to handle.

It is a costly exercise to cease rail movements due to OHS Risk of Rockfall, the Maccaferri mesh systems ensure that rockfall incidences can be managed without a halt to operations.

VIEW MORE INFO

Featured Product Solutions

TrackPad Green

TrackPad Green is designed to minimise vibration from ground and structure forces due to regular rail traffic movements that can result in excessive noise, vibration and damage to concrete structures and the rapid breakdown of ballast, leading to costly maintenance.
